Create Route Table

Create Route Table

Create Route Table for PublicSubnet-OnPremise

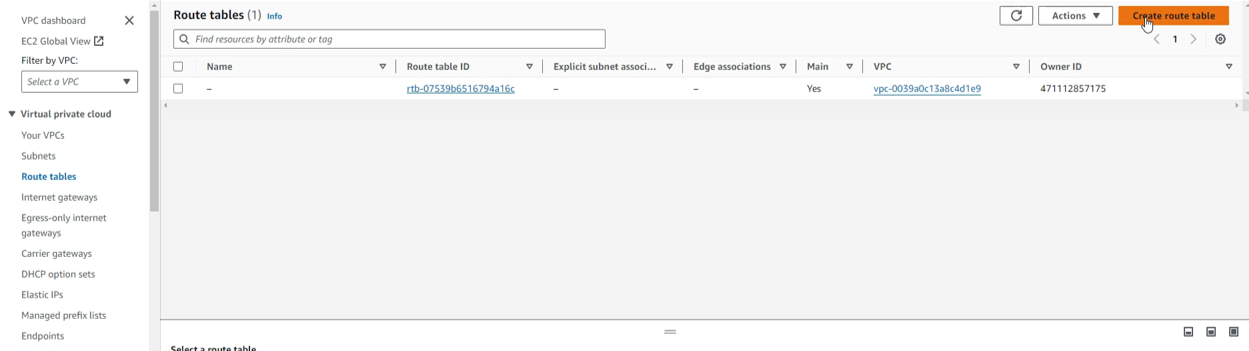

  1. In the VPC interface
  • Select Route Tables
  • Select Create route table rt

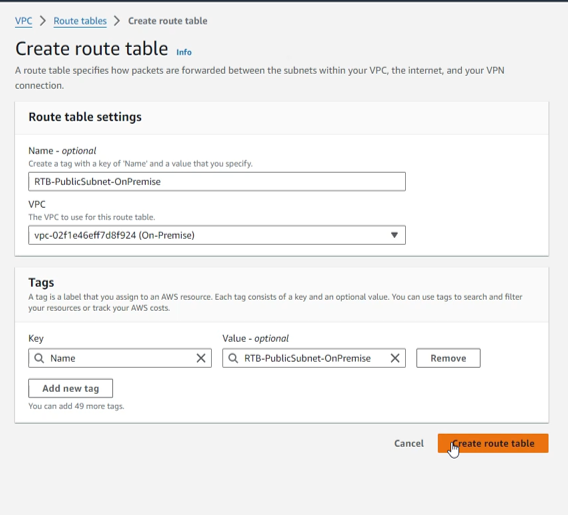

  1. Proceed to configure Route table
  • Name, enter RTB-PublicSubnet-OnPremise
  • VPC, select On-Premise VPC, VPC id will be automatically filled in
  • Select Create route table rt
  1. Complete creating Route table rt
  2. Perform Edit subnet associations
  • Select Subnet associations
  • Select Edit subnet associations

rt 5. In step Edit subnet associations

  • Select PublicSubnet-OnPremise
  • Select ** Save associations**

rt 6. Perform Edit route to route out to the internet through Internet Gateway

  • Select Edit routes rt

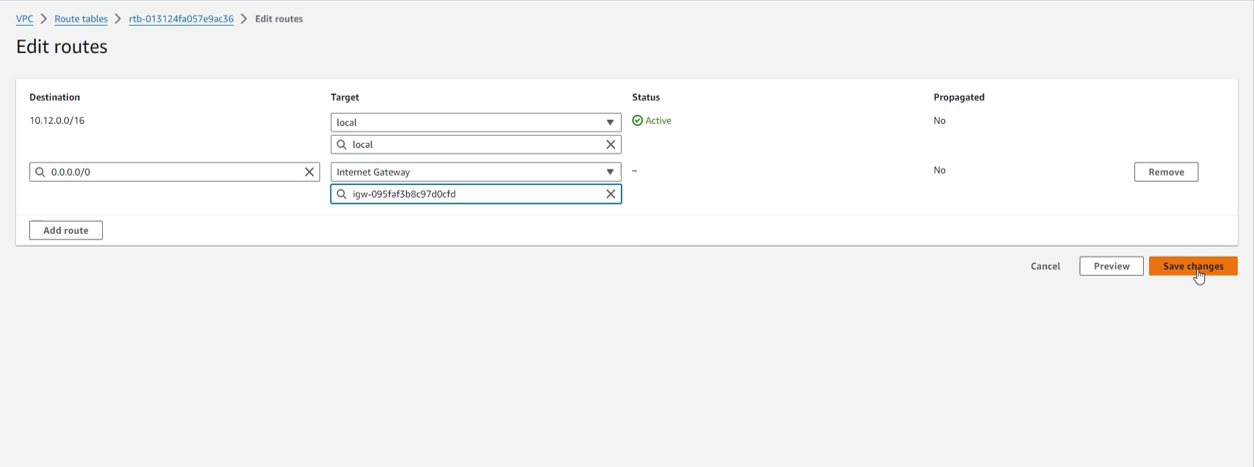

  1. In the Edit routes interface
  • Select Add route
  • Fill in the Destination CIDR : 0.0.0.0/0 representing the Internet.
  • In the Target section select Internet Gateway, then select the Internet Gateway we created. Internet Gateway ID will be automatically filled in.
  • Select Save changes rt
  1. Complete and review Routes rt

Create Route Table for PrivateSubnet-Consumer

  1. In the VPC interface
  • Select Route Tables
  • Select Create route table
  1. Proceed to configure Route table
  • Name, enter RTB-PrivateSubnet-Consumer
  • VPC, select Consumer VPC, VPC id will be automatically filled in
  • Select Create route table rt
  1. Complete creating Route table
  2. Perform Edit subnet associations
  • Select Subnet associations
  • Select Edit subnet associations rt

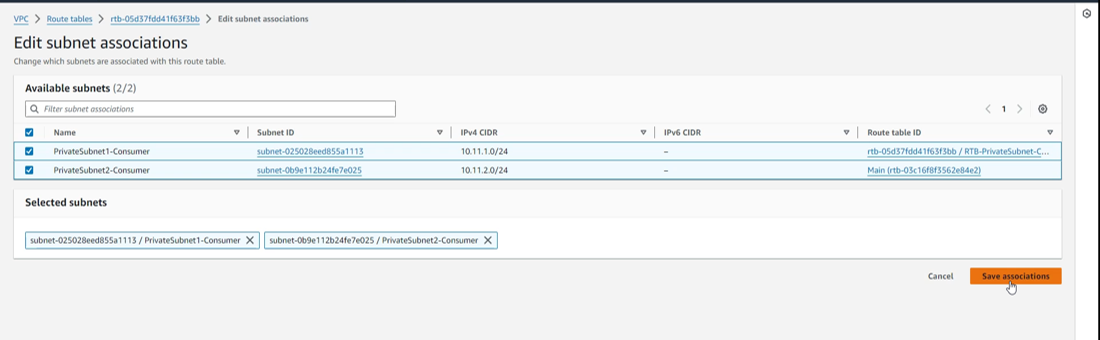

  1. In step Edit subnet associations
  • Select PrivateSubnet1-Consumer and PrivateSubnet2-Consumer
  • Select ** Save associations** rt

Create Route Table for PrivateSubnet-Provider

  1. In the VPC interface
  • Select Route Tables
  • Select Create route table

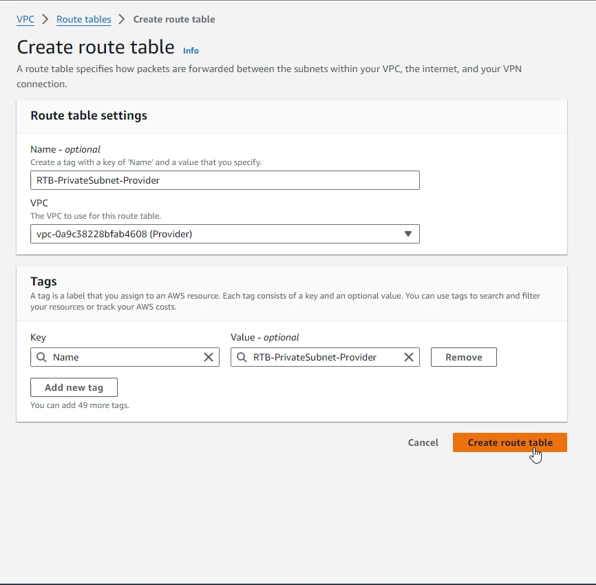

  1. Proceed to configure Route table
  • Name, enter RTB-PrivateSubnet-Provider
  • VPC, select Provider VPC, VPC id will be automatically filled in
  • Select Create route table rt

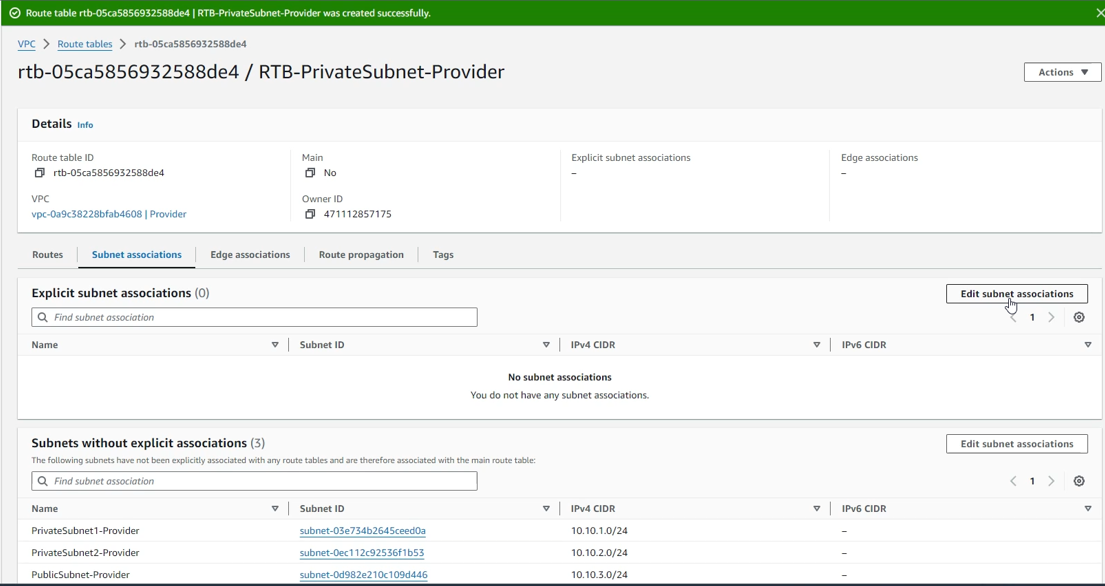

  1. Complete creating Route table
  2. Perform Edit subnet associations
  • Select Subnet associations
  • Select Edit subnet associations rt

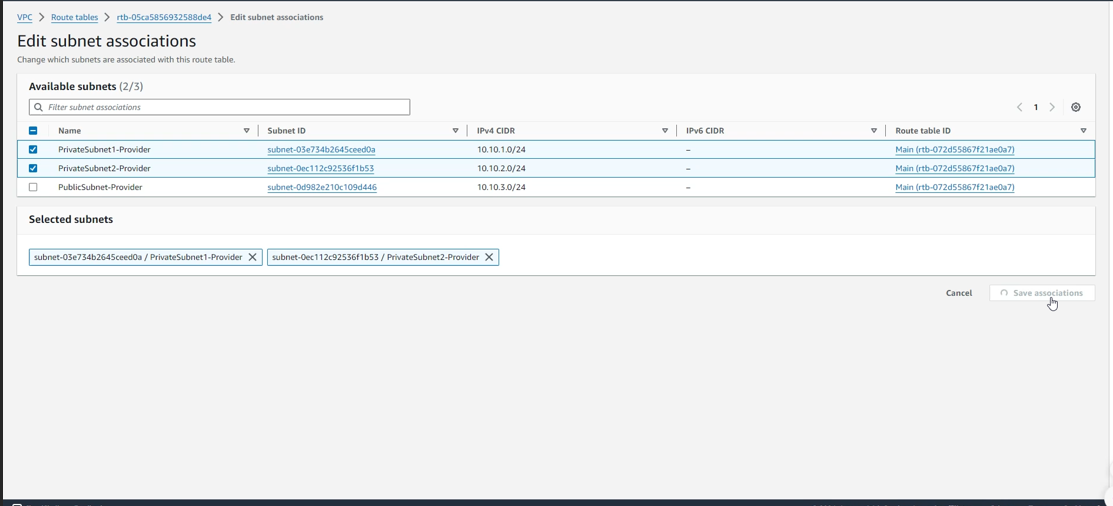

  1. In step Edit subnet associations
  • Select PrivateSubnet1-Provider and PrivateSubnet2-Provider
  • Select ** Save associations** rt

Create Route Table for PublicSubnet-Provider

  1. In the VPC interface
  • Select Route Tables
  • Select Create route table

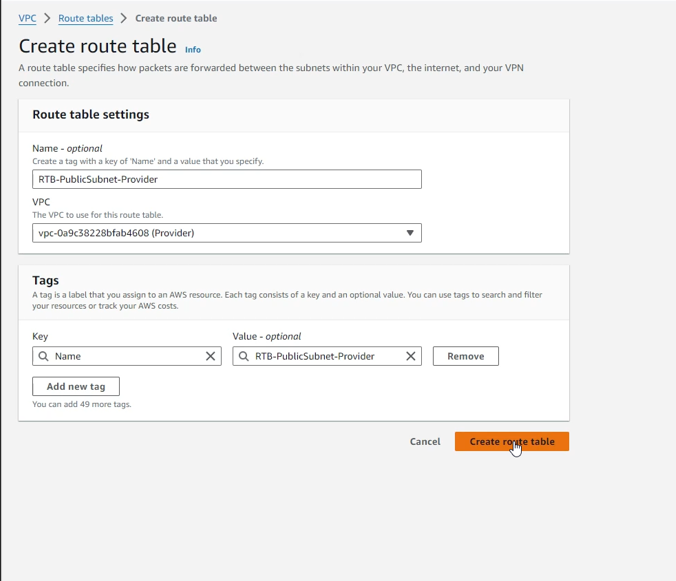

  1. Proceed to configure Route table
  • Name, enter RTB-PublicSubnet-Provider
  • VPC, select Provider VPC, VPC id will be automatically filled in
  • Select Create route table rt

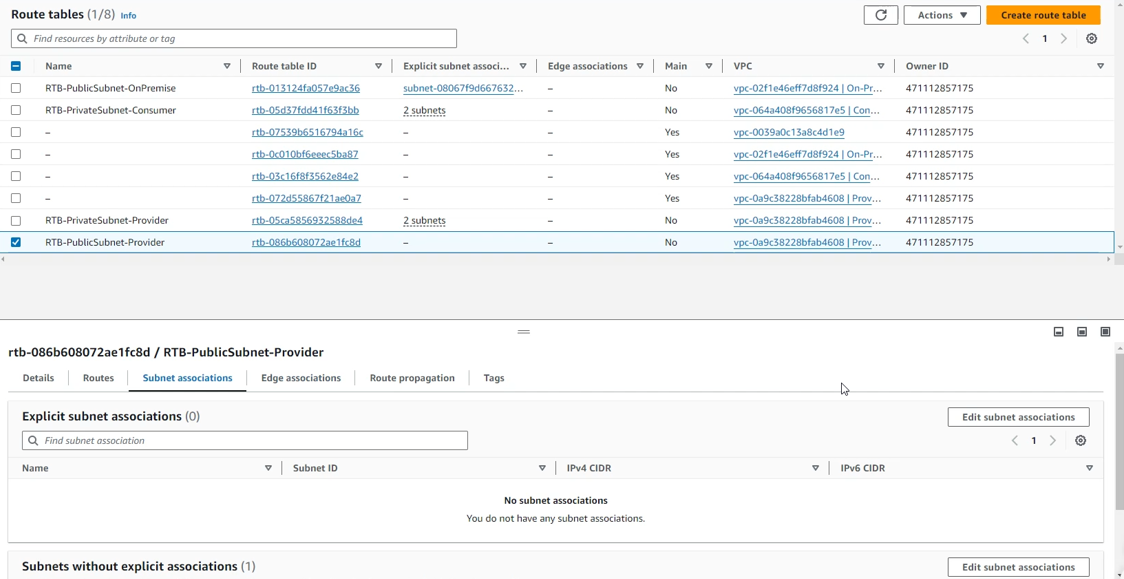

  1. Complete creating Route table
  2. Perform Edit subnet associations
  • Select Subnet associations
  • Select Edit subnet associations rt

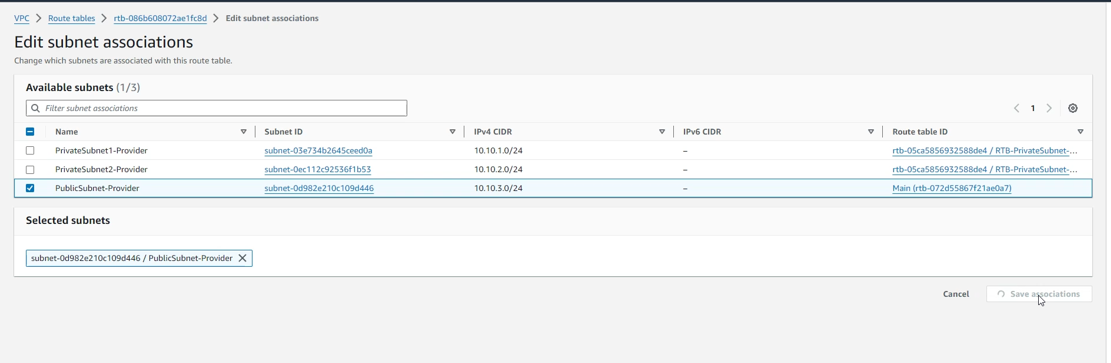

  1. In step Edit subnet associations
  • Select PublicSubnet-Provider
  • Select ** Save associations** rt
