VPN Site to Site Configuration
> Create Virtual Private Gateway
Create Virtual Private Gateway
Create Virtual Private Gateway
Create Virtual Private Gateway

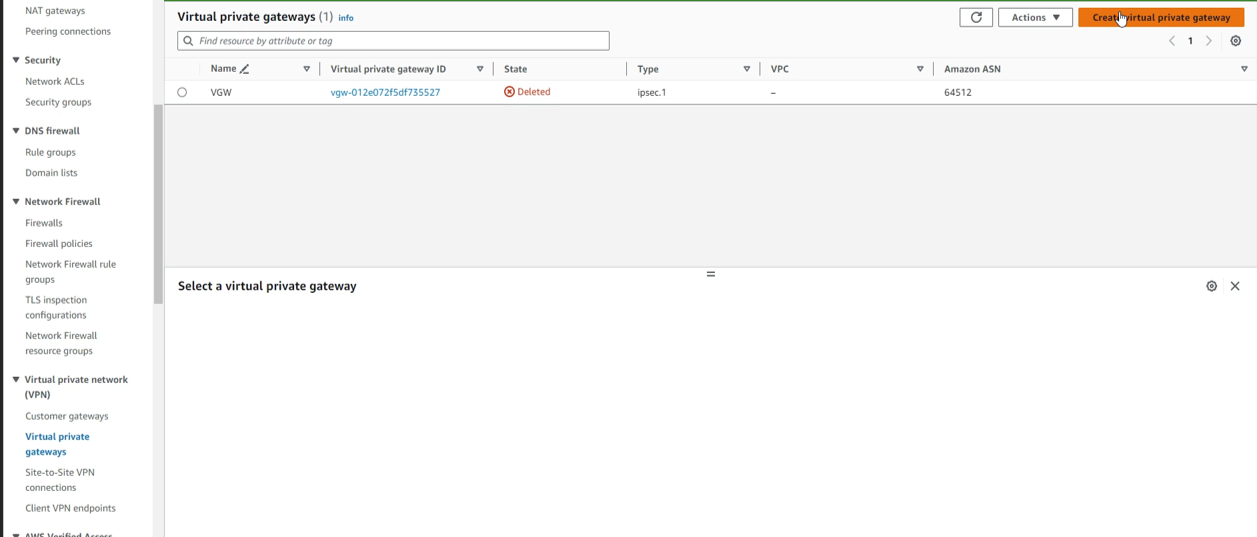

Access to
VPC
Select
Virtual Private Gateway
Select
Create Virtual Private Gateway

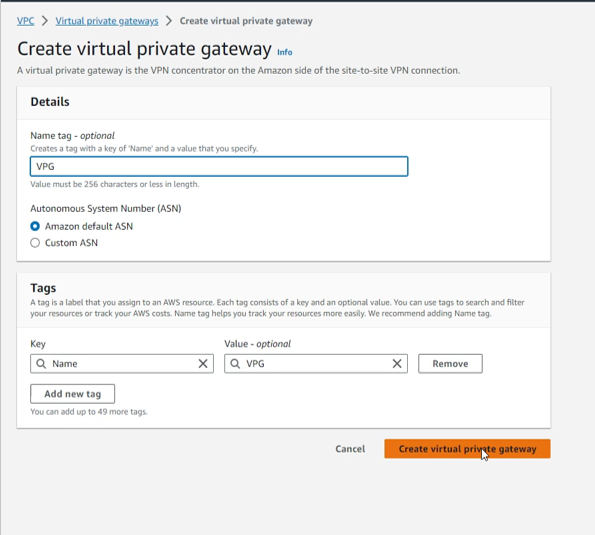

In the Create Virtual Private Gateway interface
Name tag
, enter
VPG
Select
Amazon default ASN
Select
Create virtual private gateway

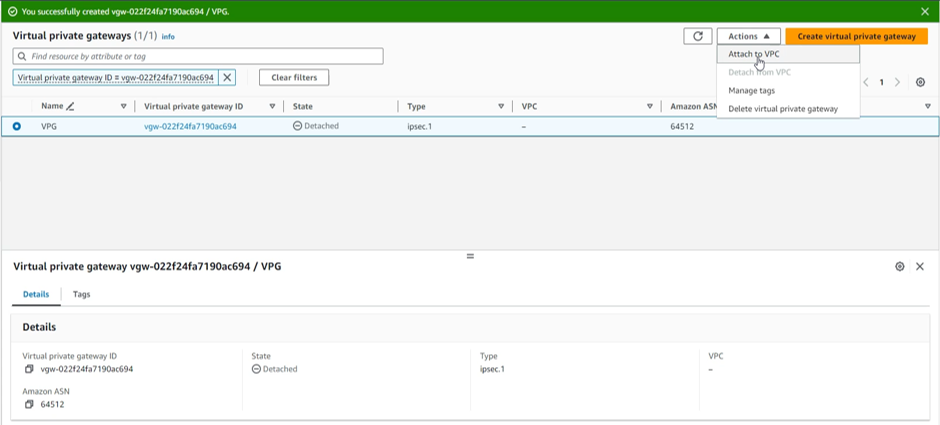

We need to perform Attach to VPC
Select
Actions
Select
Attach to VPC

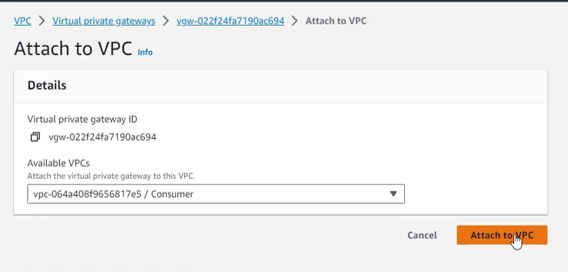

In the
Attach to VPC
interface
Select
Consumer
VPC.
Select
Attach to VPC

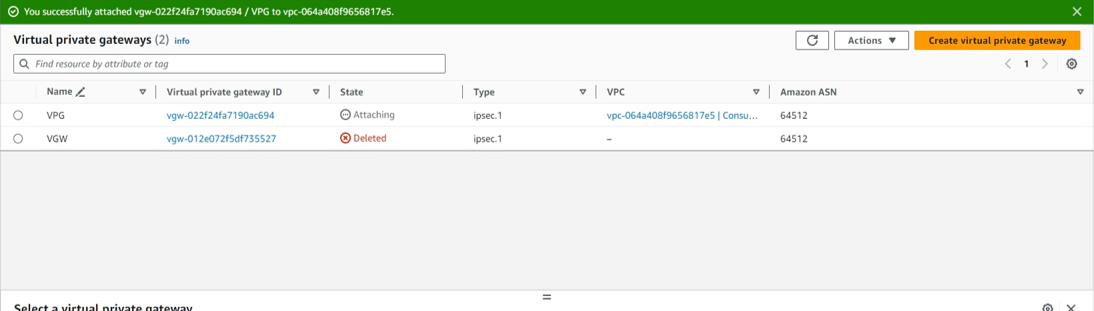

Complete and see
State
as
Attached
