Create Customer Gateway

Create Customer Gateway

  1. Access to VPC

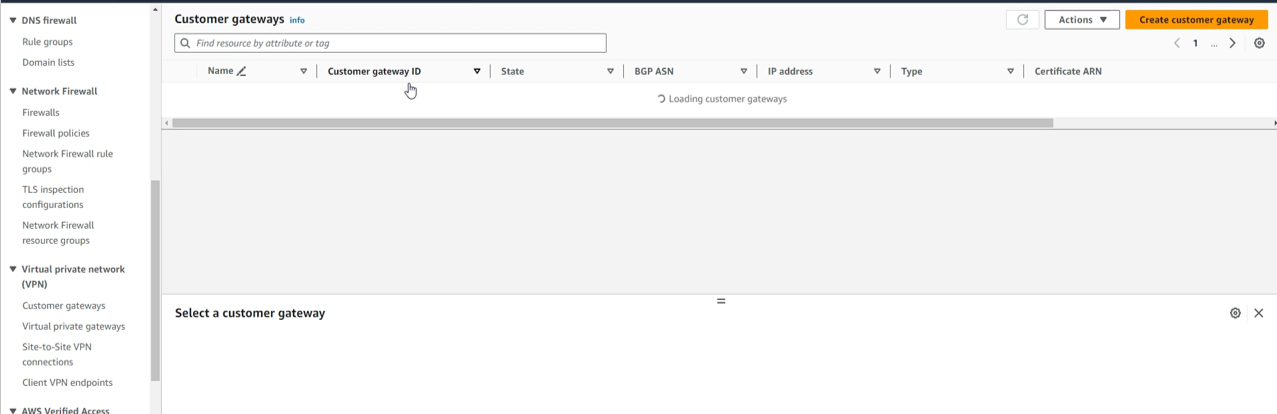

  • Select Customer Gateways
  • Select Create Customer Gateway vpn

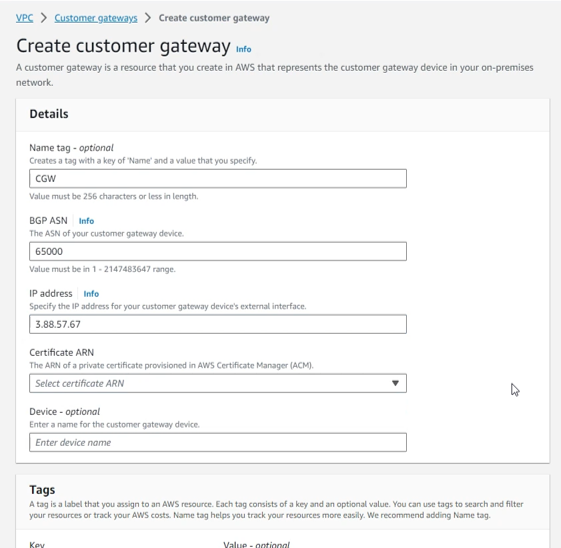

  1. In the Create Customer Gateway interface
  • Name tag, enter CGW

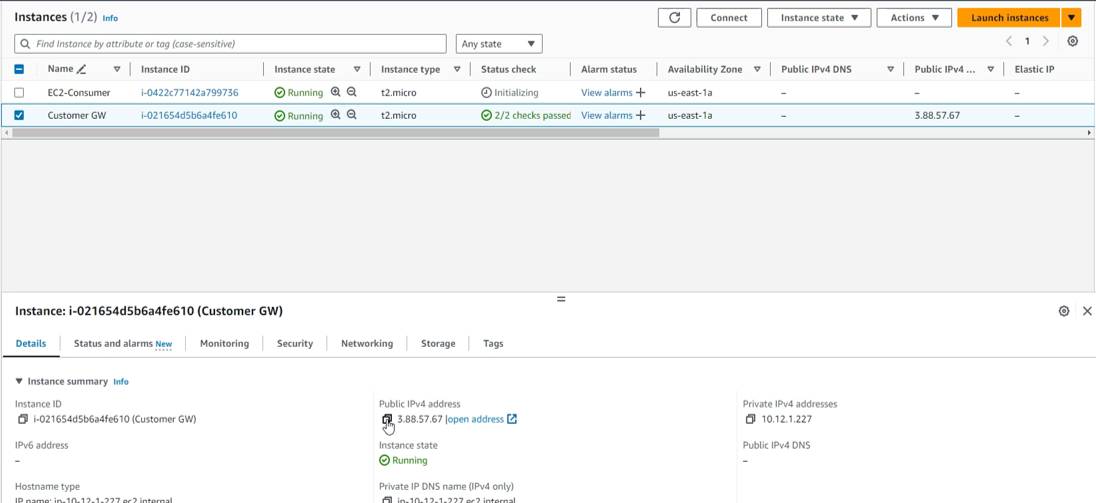

  • IP address, enter the public IP address of the Customer Gateway server. *Select Create Customer Gateway vpn vpn

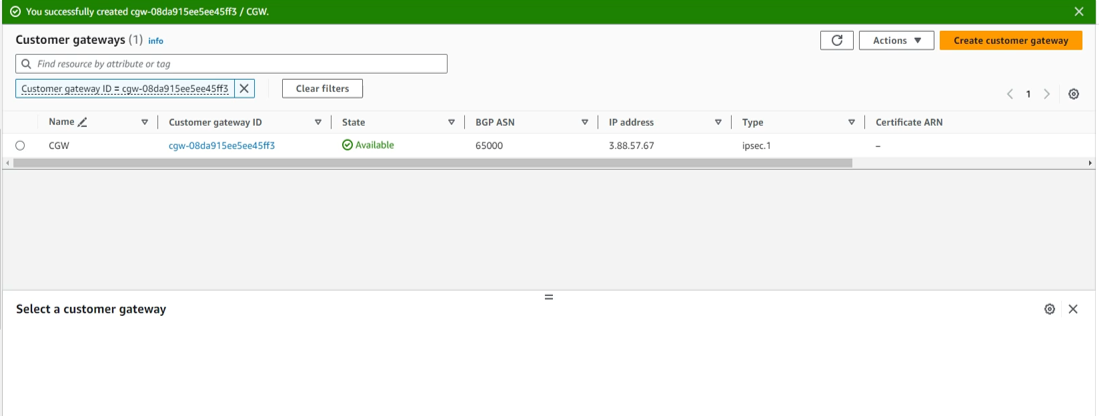

  1. Wait about 5 minutes, then complete creating Customer Gateway vpn

Note: according to the architectural model, the Customer Gateway will be located in the VPC on the onpremise environment. What we are currently doing is declaring to AWS that we will have a Customer Gateway with a public IP address that is the public address of the EC2 instance: Customer Gateway is in the On-Premise VPC.
