Configure Customer Gateway

Configure Customer Gateway

  1. Access to VPC
  • Select Site-to-Site VPN Connection
  • Select the created VPN Connection
  • Select Download Configuration vpn

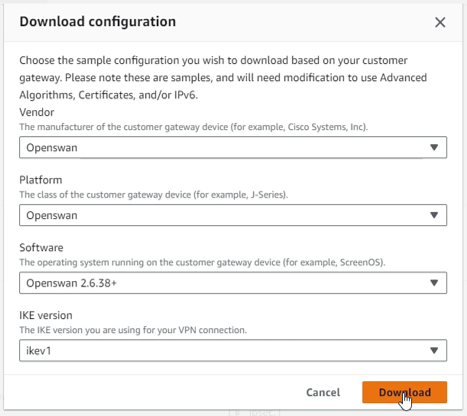

  1. In the Download Configuration dialog box, select the appliance that is appropriate for you: In this exercise, we will use OpenSwan.
  • Vendor: Select OpenSwan
  • Platform: Select OpenSwan
  • Software: Select OpenSwan 2.6.38+
  • IKE version: Select ikev1
  • Select Download. vpn
  1. Save the picture file information to the folder we use to store key pairs and tools for the lab.

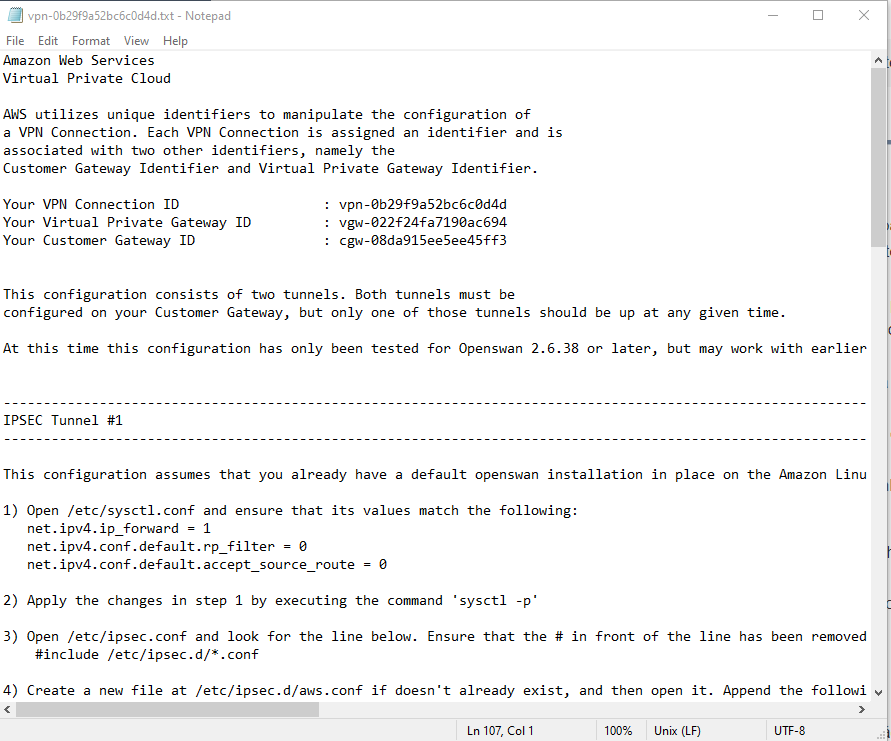

  • Then based on the configuration provided, you change the appropriate information and configuration for your device. vpn
  1. Connect to EC2 Customer Gateway

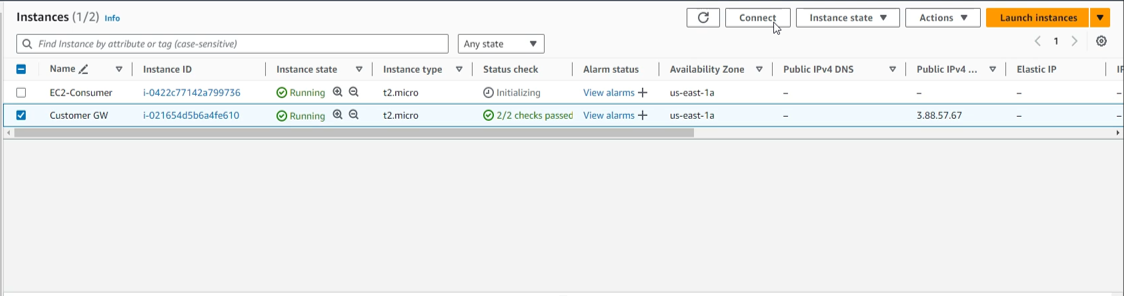

  • In the EC2 interface, select Instances, select Customer GW*, select Connect endpoint
  • In the Connect to instance interface
  • In the Connection Type section, select Connect using EC2 Instance Connect, because Customer GW belongs to the Public subnet, so we use EC2 Instance Connect
  • Select Connect endpoint
  • Connection completed endpoint

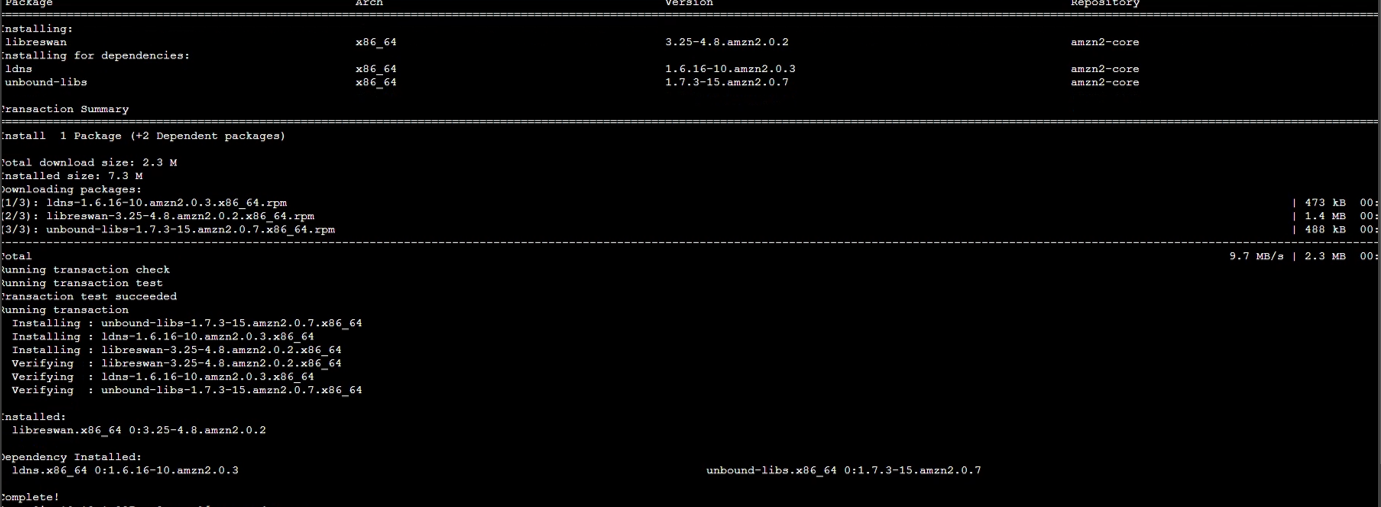

  1. Install OpenSwan
sudo su
yum install openswan -y

vpn 5. Check the configuration file /etc/ipsec.conf

en /etc/ipsec.conf

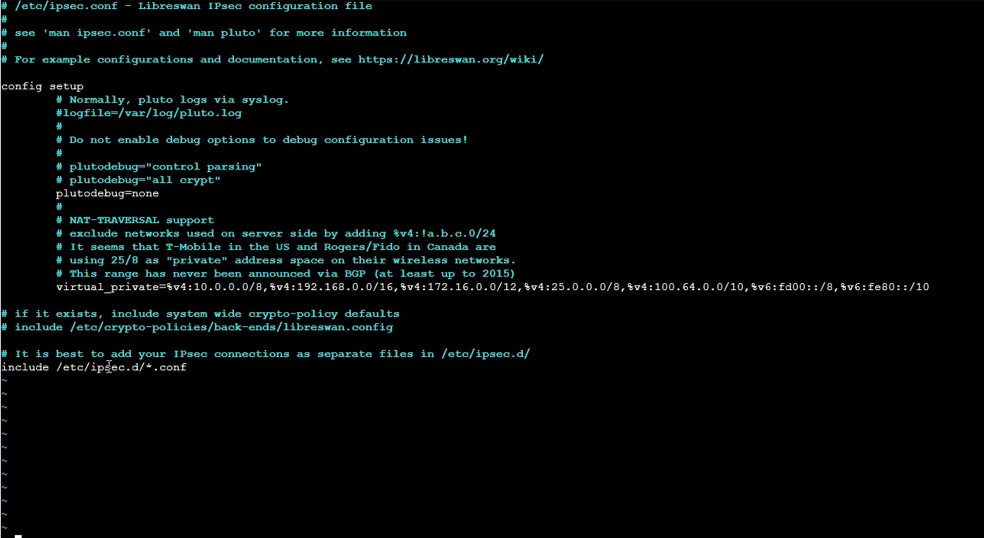

  • Check the configuration as shown below. vpn
  • Press the ESC key and the combination :q! to exit the vi editor.
  1. Configure file /etc/sysctl.conf
en /etc/sysctl.conf
  • Press i key to edit the file.
  • Add the following snippet to the end of the configuration file
net.ipv4.ip_forward = 1
net.ipv4.conf.all.accept_redirects = 0
net.ipv4.conf.all.send_redirects = 0

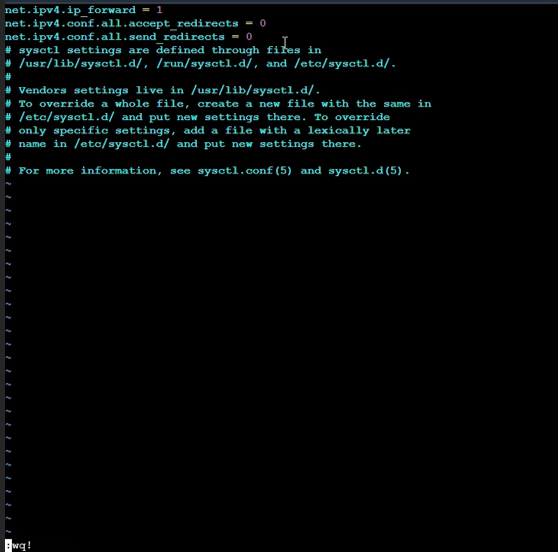

  • Press the ESC key and the combination :wq! to save the configuration file vpn

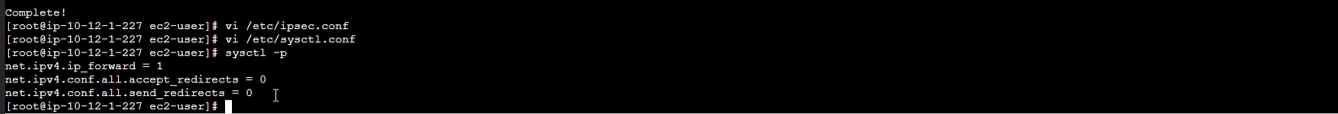

  1. Then to apply this configuration, run the command:
sysctl -p

vpn 8. Next we will configure the file /etc/ipsec.d/aws.conf

en /etc/ipsec.d/aws.conf
  • Press i key to edit the file.
  • Add the following snippet to the configuration file. We will create 2 Tunnels with information taken from the VPN Connection configuration file you downloaded and saved in the folder containing the key pair previously.
  • Make sure you edit the appropriate IP address and network layer before copying the above configuration.
  • For Amazon Linux, we will remove the auth=esp line in the original configuration file.
  • Because we only have 1 public IP address for Customer Gateway, we will need to add configuration overlapip=yes.
  • leftid: IP Public Address on OnPremise side. (Here is the public IP of EC2 Customer GW in On-Premise VPC).
  • right: IP Public Address on AWS VPN Tunnel side.
  • leftsubnet: CIDR of Local Network (If there are multiple network layers, you can leave it as 0.0.0.0/0).
  • rightsubnet: CIDR of the Private Subnet Network on AWS.
conn Tunnel1
authby=secret
auto=start
left=%defaultroute
leftid=3.88.57.67
right=34.226.49.224
type=tunnel
ikelifetime=8h
keylife=1h
phase2alg=aes128-sha1;modp1024
ike=aes128-sha1;modp1024
keyingtries=%forever
keyexchange=ike
leftsubnet=10.12.0.0/16
rightsubnet=10.11.0.0/16
dpddelay=10
dpdtimeout=30
dpdaction=restart_by_peer
 overlapip=yes

conn Tunnel2
authby=secret
auto=start
left=%defaultroute
leftid=3.88.57.67
right=52.70.128.251
type=tunnel
ikelifetime=8h
keylife=1h
phase2alg=aes128-sha1;modp1024
ike=aes128-sha1;modp1024
keyingtries=%forever
keyexchange=ike
leftsubnet=10.12.0.0/16
rightsubnet=10.11.0.0/16
dpddelay=10
dpdtimeout=30
dpdaction=restart_by_peer
 overlapip=yes

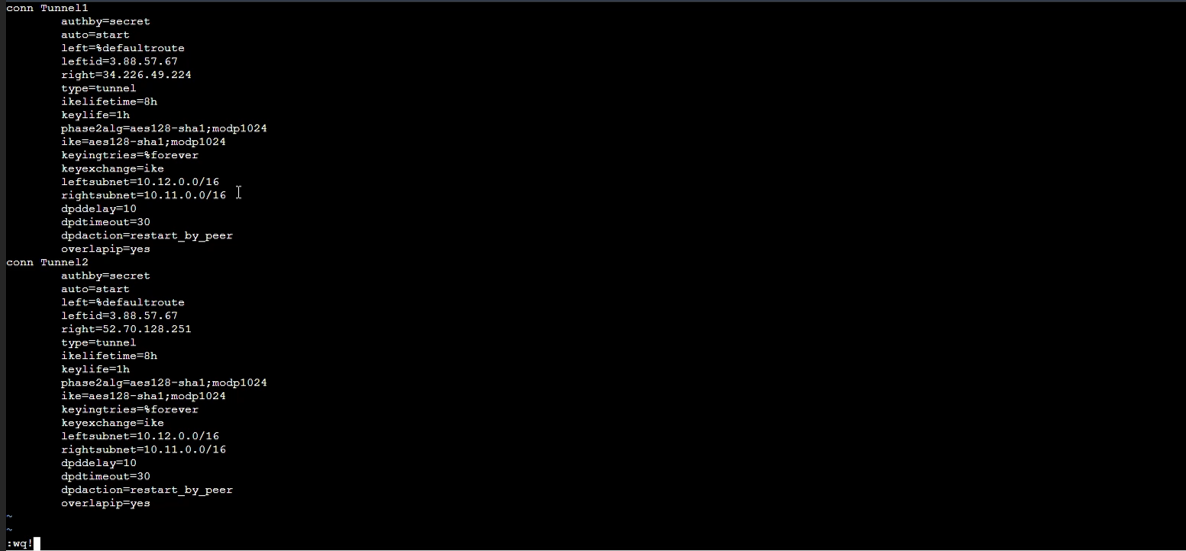

vpn

  • Press the ESC key and the combination :wq! to save the configuration file
  1. Check the next step in the configuration file we downloaded.

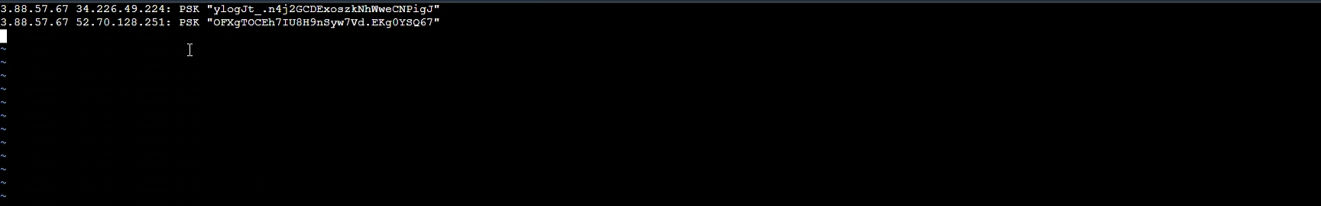

  2. Create and configure file etc/ipsec.d/aws.secrets Create a new file with the following configuration to set up authentication for 2 Tunnels.
  • Run the command vi /etc/ipsec.d/aws.secrets to create files and configurations
touch /etc/ipsec.d/aws.secrets
  • Press i key to edit the file.
  • Add the following configuration snippet to the end of the configuration file (this config snippet is in step 5 of IPSEC Tunnel #1 and IPSEC Tunnel #2)
  • Press the ESC key and the combination :wq! to save the configuration file vpn
  1. Restart Network service & IPSEC service
systemctl restart network
systemctl enable ipsec.service
systemctl start ipser.service
systemctl status ipser.service
  • If the tunnel status is still not running properly, after checking and updating the configuration you will need to run the command to restart the service network and IPsec :
systemctl restart network
systemctl restart ipsec.service

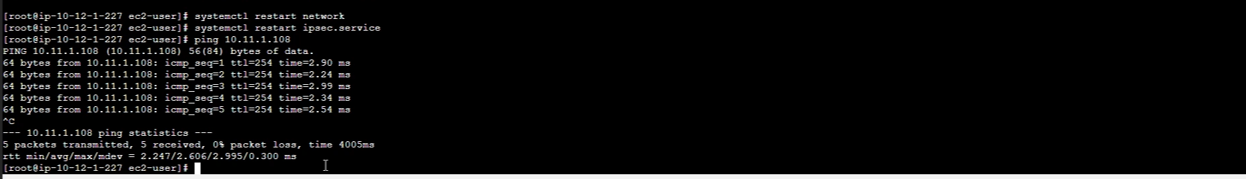

vpn 12. After the service has run, wait a few minutes and then try to ping from the Customer Gateway server to the EC2 Consumer server. If the VPN configuration is successful, you will get the results below.

ping <EC2 Private IP>

vpn
