Create Network Load Balancer

Create Network Load balancer

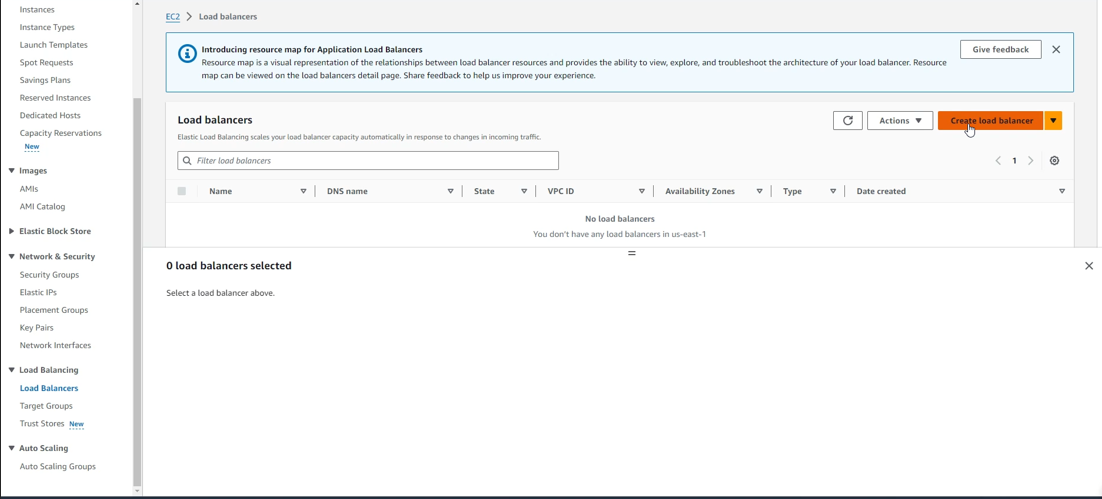

  1. In the EC2 interface select Load balancers
  • Select Create load balancer nlb
  1. Create Network Load Balancer

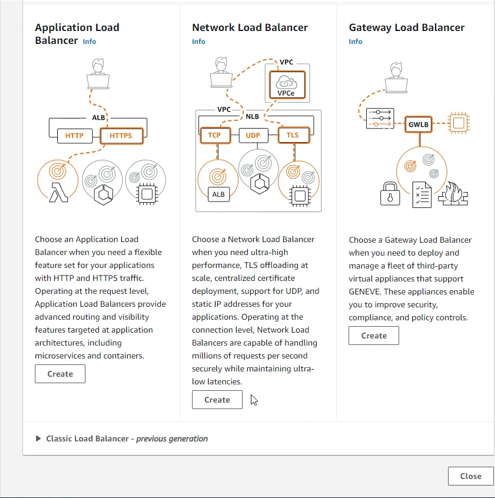

  • In the Create load balancer interface, select Create in the *Network Load Balancer section nlb

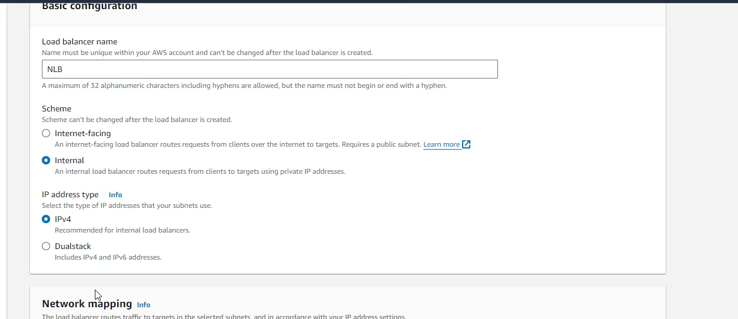

  • Load balancer name, enter NLB
  • Scheme, select Internal nlb
  • VPC, select Provider VPC

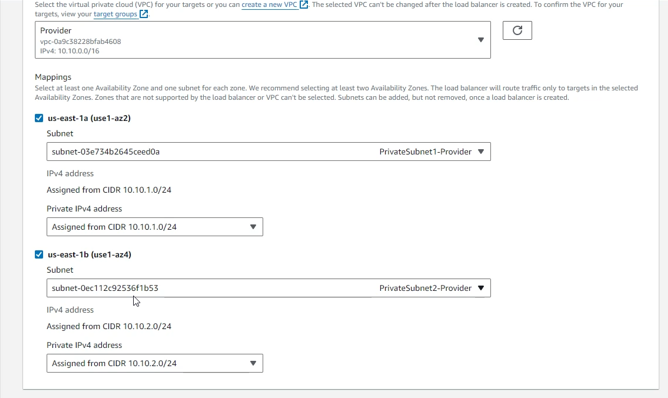

  • Mappings selects the map with PrivateSubnet1-Provider in AZ us-east-1a and PrivateSubnet2-Provider in AZ us-ease-1b nlb

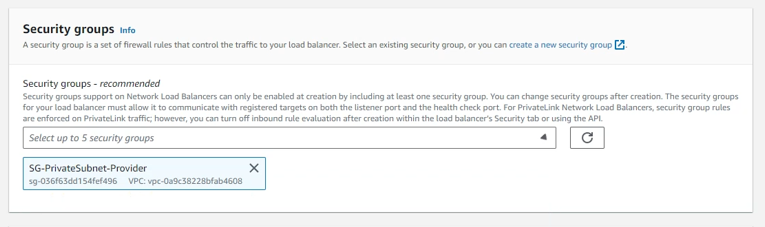

  • Security groups, select SG-PrivateSubnet-Provider nlb

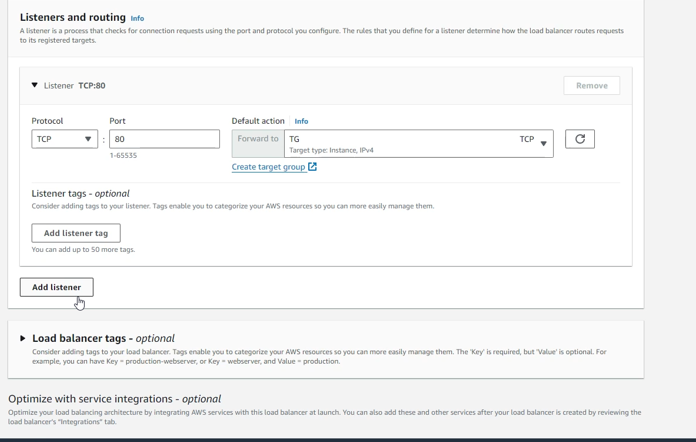

  • In the Listeners and routing section, in the Default action section, select the TG you just created
  • Select Create to complete creating Network Load Balancer nlb 3.Check Healthcheck status of Target groups

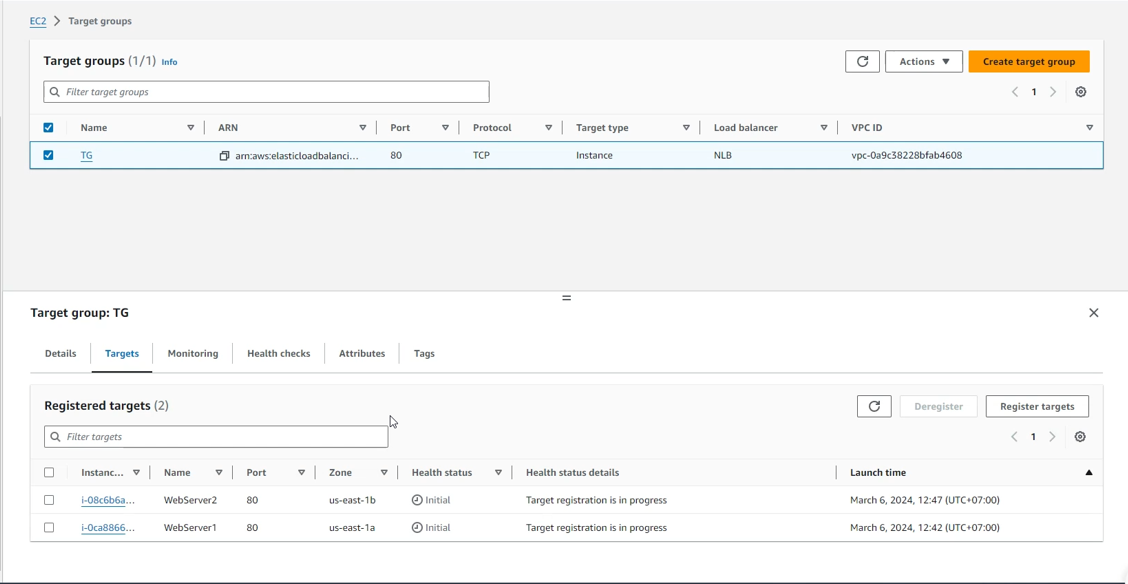

  • After creating Network Load Balancer, Healthcheck status of Target groups is Initial nlb

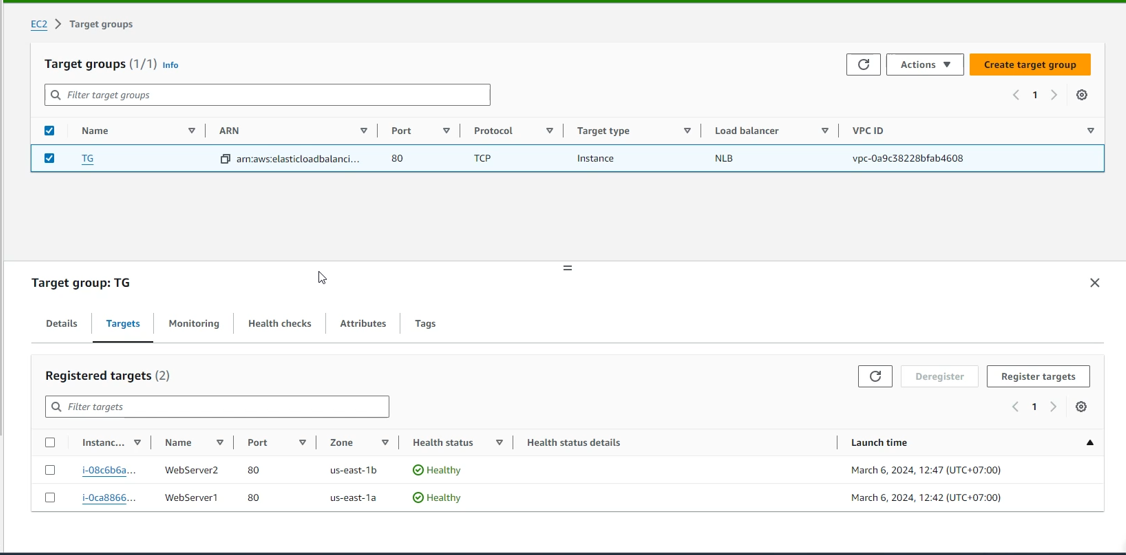

  • After the default configured Health check period of 5 times, the status will change to Healthy nlb
